Product details description

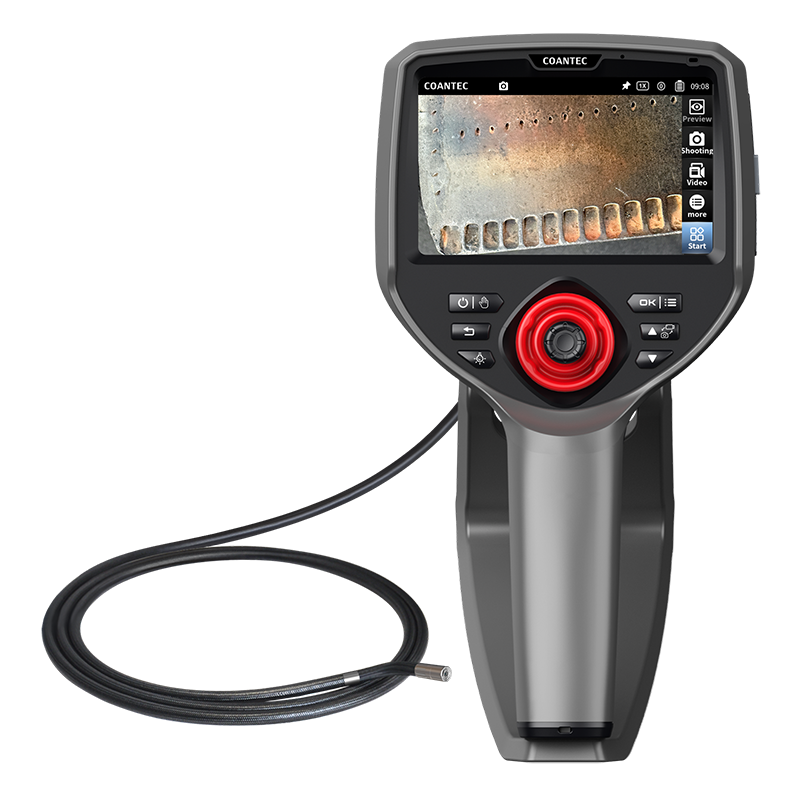

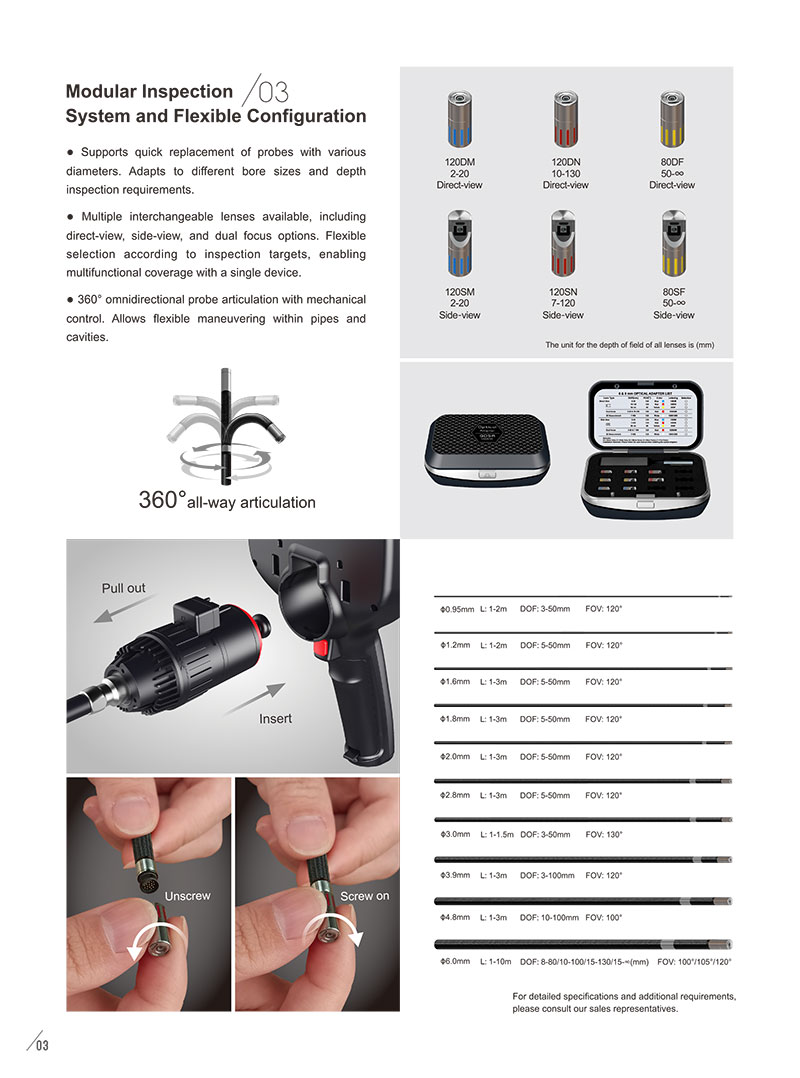

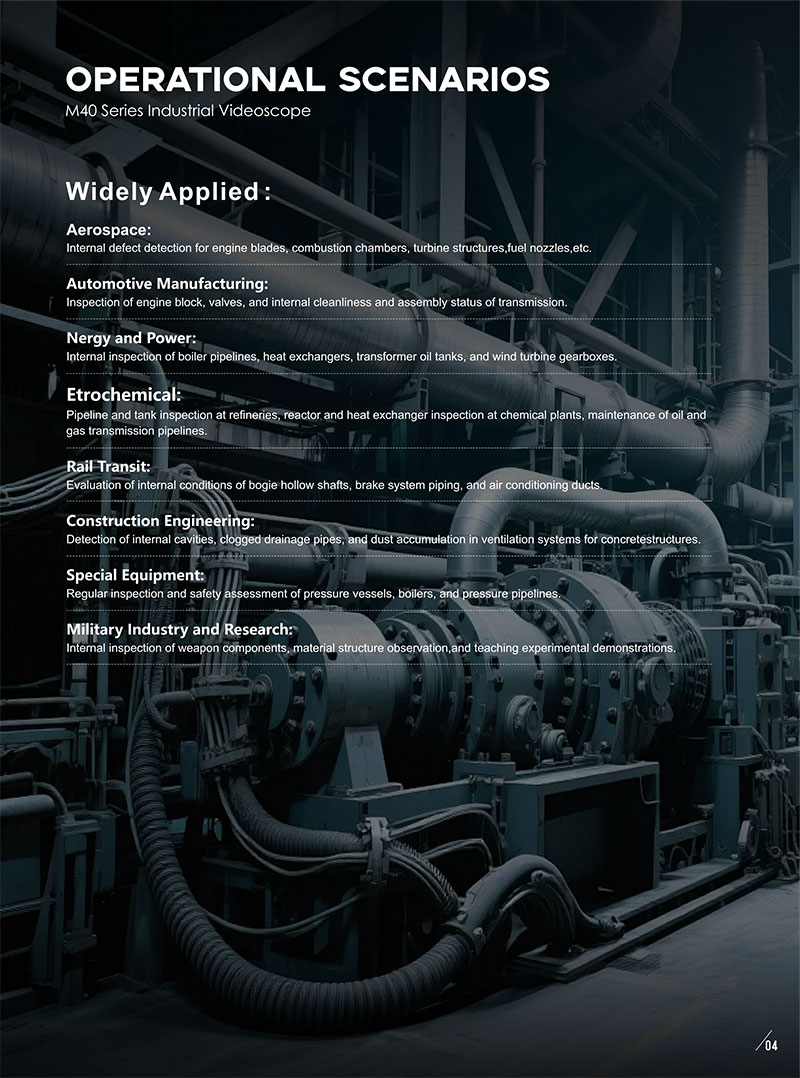

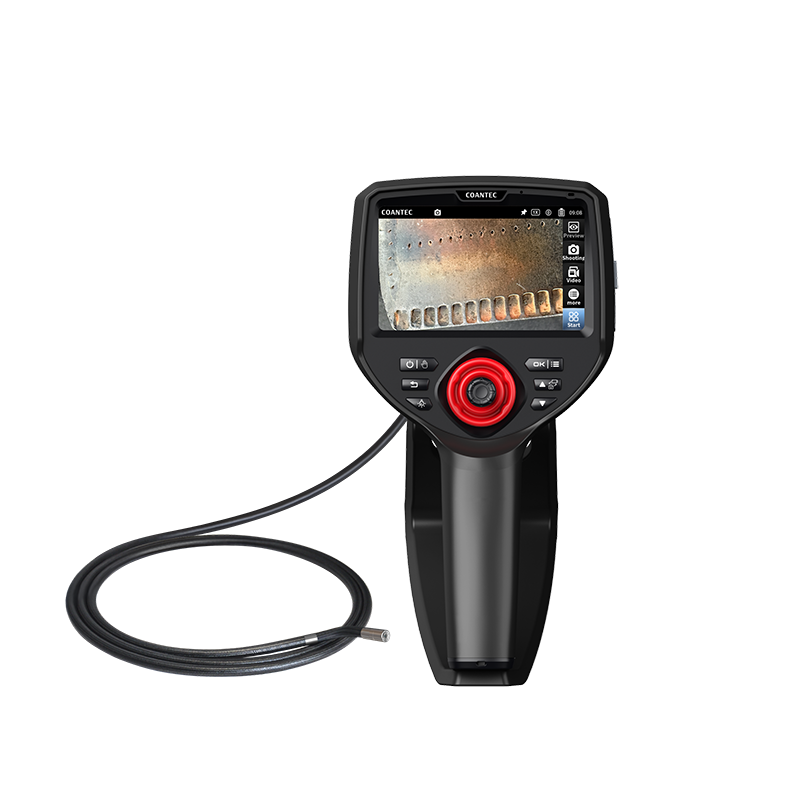

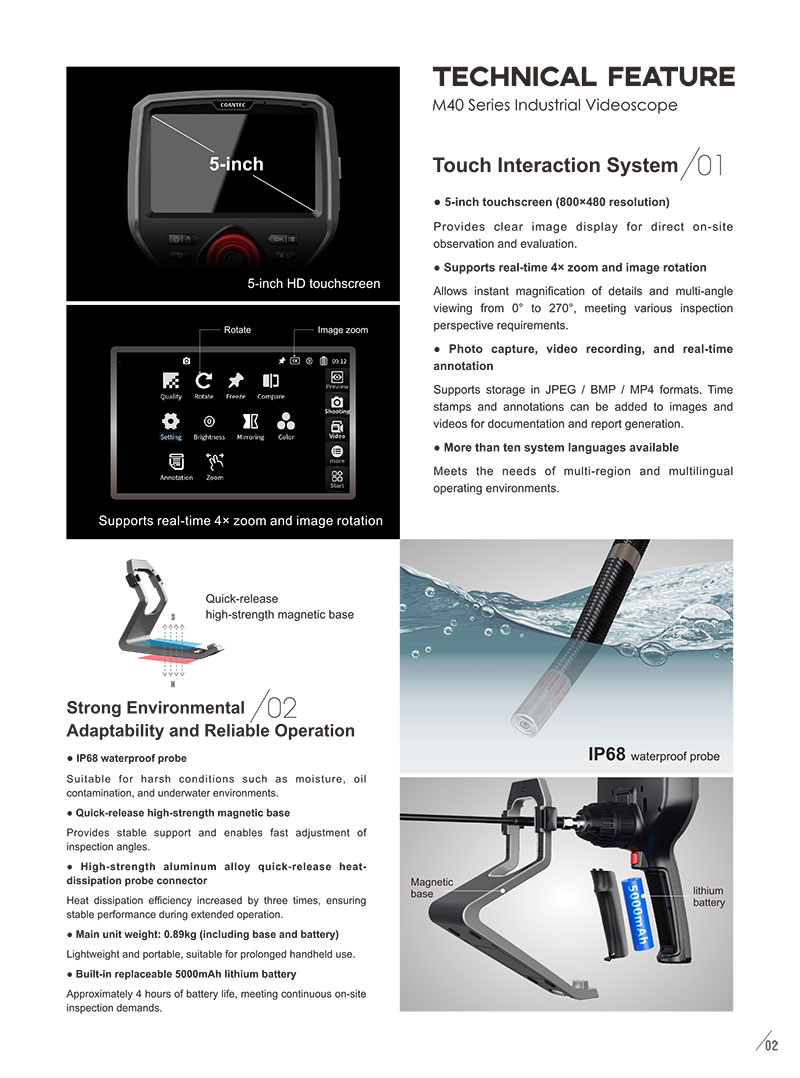

This industrial endoscope features a 5‑inch HD touchscreen with 800×480 resolution, supporting real‑time 4× zoom and multi‑angle image rotation for detailed inspections. Designed for harsh environments, this industrial endoscope offers IP68 probe waterproofing, a quick‑release magnetic base, and a high‑strength aluminum alloy heat‑dissipating connector that triples cooling efficiency. As a modular industrial endoscope, it supports quick probe changes with multiple diameters and interchangeable direct‑view and side‑view lenses, while 360° omnidirectional articulation provides flexible maneuvering in tight spaces. Weighing only 0.89kg with a 5000mAh rechargeable battery delivering four hours of operation, this portable industrial endoscope excels in aerospace, automotive, and energy applications. With more than ten system languages and comprehensive photo/video documentation capabilities, this industrial endoscope delivers reliable performance across diverse inspection scenarios.
| Host | |||||||
| Display Dimension | 5-inch HD touchscreen | ||||||
| Display Resolution | 800 × 480 | ||||||
| Image Zoom | Supports real-time 4× zoom; up to 5× zoom during image playback | ||||||
| LED Brightness Levels | Adjustable from 0 to 9 levels | ||||||
| Auxiliary Measurement | Function Crosshair reference line | ||||||
| Photo/Video | Supports photo capture and video recording | ||||||
| Document Format | Images stored in JPEG / BMP format; videos in MP4 format | ||||||
| Image Rotation | 0° / 90° / 180° / 270° rotation | ||||||
| Image Preview | List-view preview; supports full-screen viewing, file deletion, time watermarking, etc. | ||||||
| Screen Backlight Brightness | 700nit high-brightness sunlight screen | ||||||
| Output Port | Mini HDMI | ||||||
| Menu Language | Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, German, Portuguese, Spanish, Russian, Italian, Dutch, etc, more than ten languages | ||||||
| Host Dimension | 295 mm × 140 mm × 80 mm | ||||||
| Package Dimension | 425mm × 345mm × 188mm | ||||||
| Host Weight | 0.89 kg (including base and battery) | ||||||
| Tube | High-strength aluminum alloy quick-release heat-dissipation replaceable structure | ||||||
| *Probe Diameter(±0.1mm) | Φ0.95mm | Φ1.2/1.6mm | Φ1.8/2.0mm | Φ2.8mm | Φ3.9mm | Φ4.8mm | Φ6.0mm |
| *Camera Pixels | 160000 | 160000 | 160000 | 160000 | 1000000 | 1000000 | 1000000 |
| View Direction | Forward | Forward | Forward | Forward/Side | Forward/Side | Forward/Side | Forward/Side |
| *Depth of Field | 3-50mm | 5-50mm | 5-50mm | 5-50mm | 5-100mm | 8-80mm | 8-80mm |
| *Field of View | 120° | 120° | 120° | 120°/120° | 120°/70° | 120°/70° | 120°/70° |
| *Tube Length | 1-1.5m | 1-2m | 1-3m | 1-5m | 1-3m | 1-3m | 1-10m |
| Lighting Mode | Fiber+backend LED | Front LED | Front LED | Front LED / Fiber+backend LED | |||
| Joystick Control | Non-articulation | Non-articulation / Two-way | 360° all-way articulation | ||||
| *Probe Bending Angle | / | Tube length≤3m, 150°; Tube length 3m to 5m, 120°; Tube length≥7m, 90° | |||||
| Tube Material | Alloy spring tube | Tungsten braided wear-resistant tube | |||||
| Probe Material | Hard alloy protective shell | ||||||
| Joystick Control | Mechanical control, The rocker comes with a Dnison tight adjustment | ||||||
| Compatibility | Interchangeable Tube | ||||||
| Protective Device | Buffer for connecting host and wear-resistant tube | ||||||
| Probe Waterproof Level | / | IP68 | |||||
| Lens System | Interchangeable | ||||||
| Lens Model | Direct View | Direct View Dual Focus (Macro/Near Focus Switchable) | Side View | Side View Dual Focus (Macro/Near Focus Switchable) | |||
| Depth of Field (mm) | 2-20/10-130/50-∞ | 5-30&15-150 | 2-20/7-120/50-∞ | 3-20&7-100 | |||
| Field of View (°) | 120/120/80 | 100 | 120/120/80 | 120 | |||
| Power | |||||||
| Power Supply | Rechargeable lithium battery (with reverse battery protection.) | ||||||
| Battery | 3.7V, 5000mAh | ||||||
| System Operating Time | 4 hours | ||||||
| Operation Environment | |||||||
| System Operating Temperature | -10°C~50°C | ||||||
| Probe Operating Temperature | -20°C~85°C | ||||||
| Storage Temperature | -20°C~60°C | ||||||
| Relative Humidity | 15%~90% | ||||||
| Others | |||||||
| Base | Quick-release type | ||||||
| Configurations | |||||||
| Standard Configurations | M40 videoscope ×1, instrument case ×1, magnetic base ×1, rechargeable lithium battery ×1, charger ×1, card reader ×1, 8G TF card ×1, anti-fall hand strap ×1, user manual ×1, usage precautions ×1 | ||||||
| * Note | For specific parameters (such as illumination, depth of field, pixel, field of view, working length, bending angle, etc.) and other requirements, please contact relevant personnel for confirmation. | ||||||
