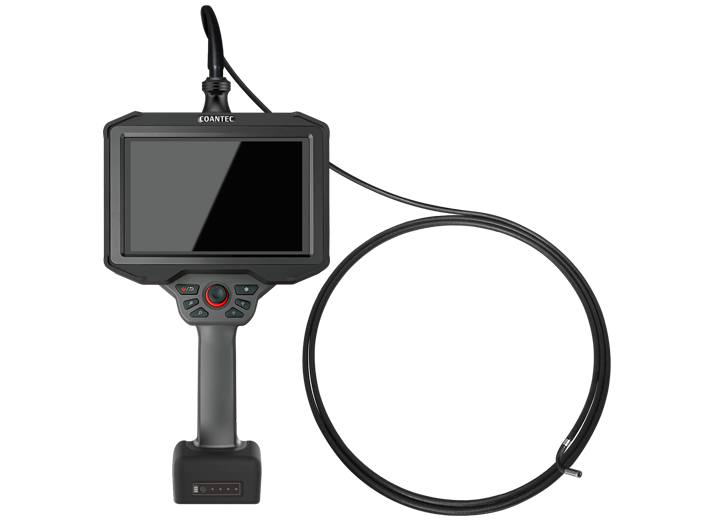

IPS full lamination HD touch screen

Brand new 7inch IPS full lamination HD touchscreen,connected to the host by blade connectors,stable and reliable.It can be removed and operated separately for viewing and processing files.

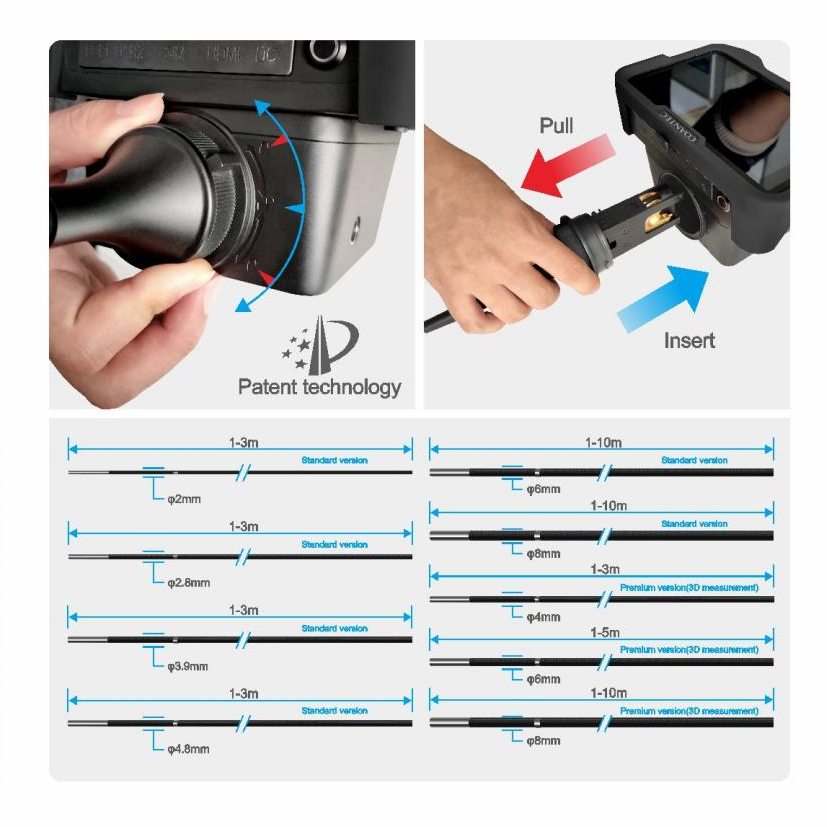

Original electric-control probe replacement  technology

The   host    can   be   equipped    with   tubes    in   different    lengths diameters,light sources,users can save the cost at maximum.The insertion tube is connected with the host by buckle and interference fit (original   patent),which   makes   disassembly  and  assembly   more convenient and faster.

Different focal length lenses can be replaced

Unique double threaded tip adaptor,the tube can be equipped with lenses  in  different  focus,view  angle,and  view  direction(direct/side view).It is suitable for inspecting targets at different distances presenting clearer image

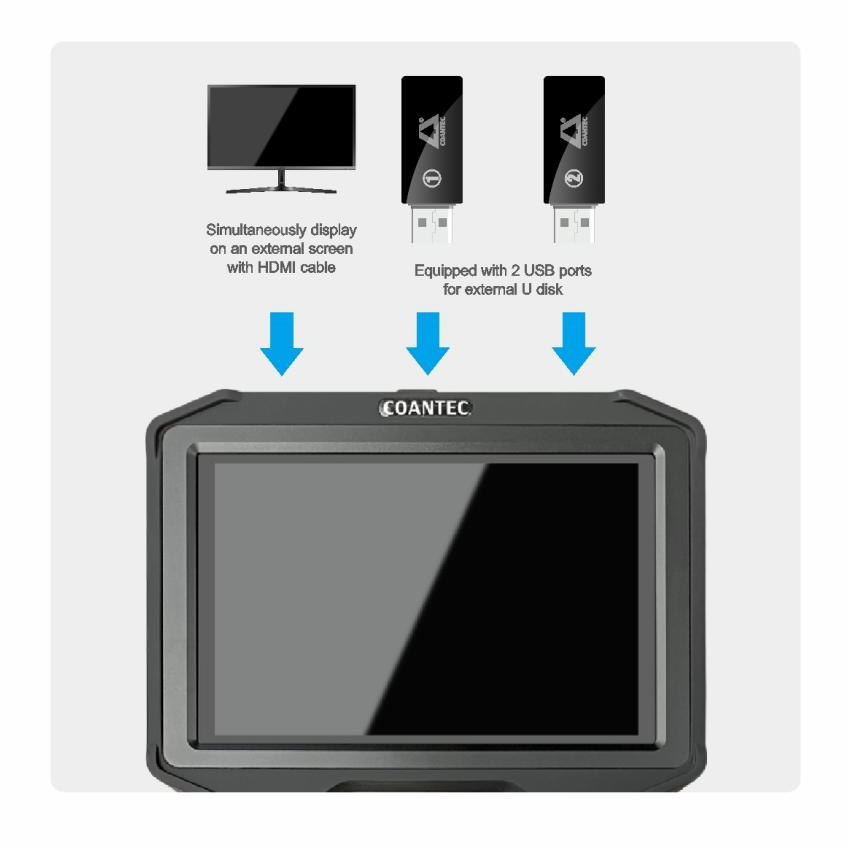

Larger storage space

The host has built-in 16G large storage space by default(which can be expanded to 32G/64G/128G).It is equipped with two USB ports for external USB disk,which can be used to access data and upgrade software.

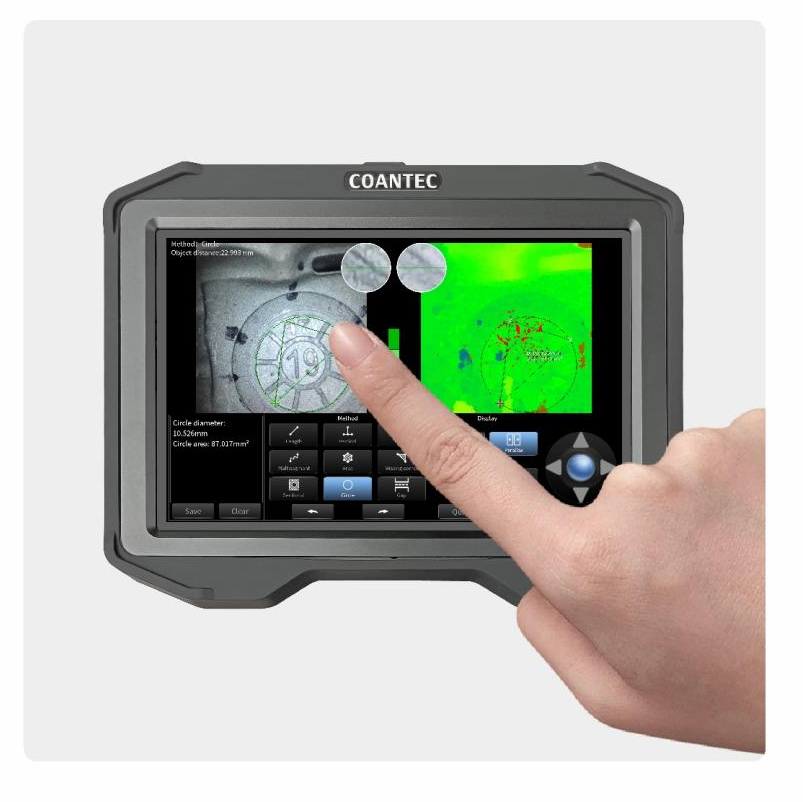

New 3D measurement function

X5 Pro series 7-inch premium version is equipped with 3D measuring system,which can accurately measure Length,

Vertical,Depth,Multisegments, Area,Missing corner, Sectional,

Circles and Gap.With measuring accuracy of 0.01mm and error≤5%

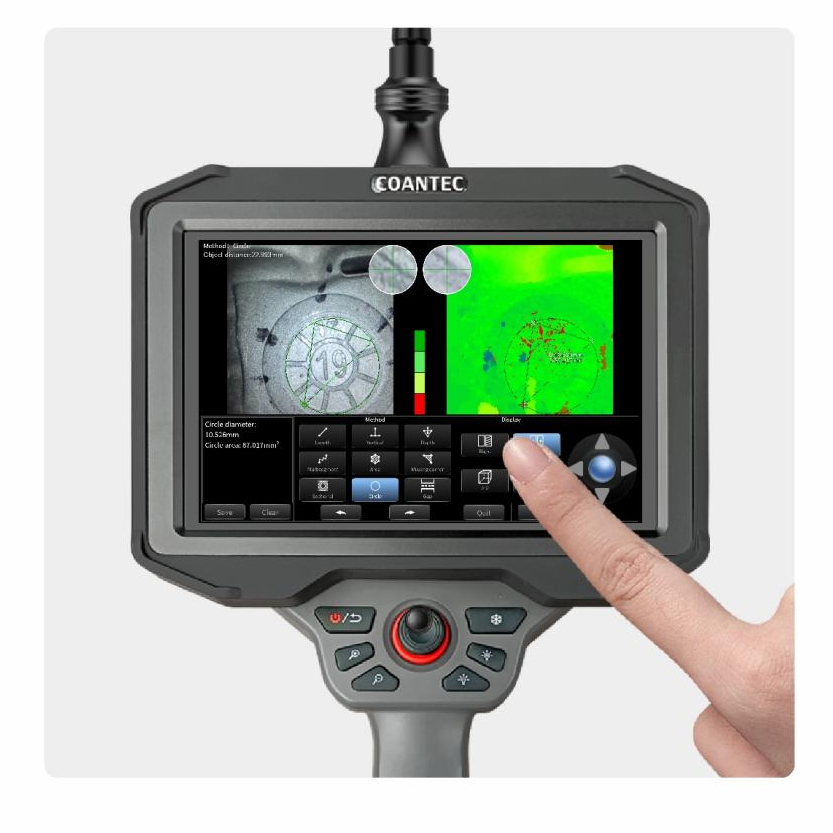

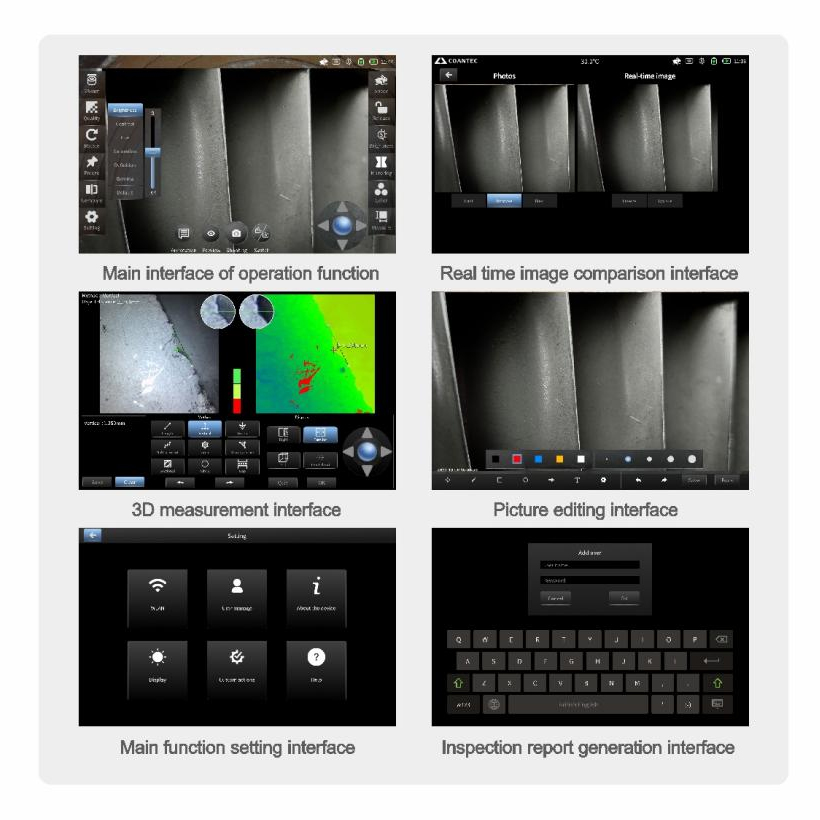

Powerful function,simple interface

Simple new UI interface,can realize photography,video,virtual rocker operation,speed   and   slow    adjustment,brightness   adjustment,file management,real-time  comparison,report   generation,wireless connection,live  streaming,etc. User-friendly  design,simple and  easy  to operate.

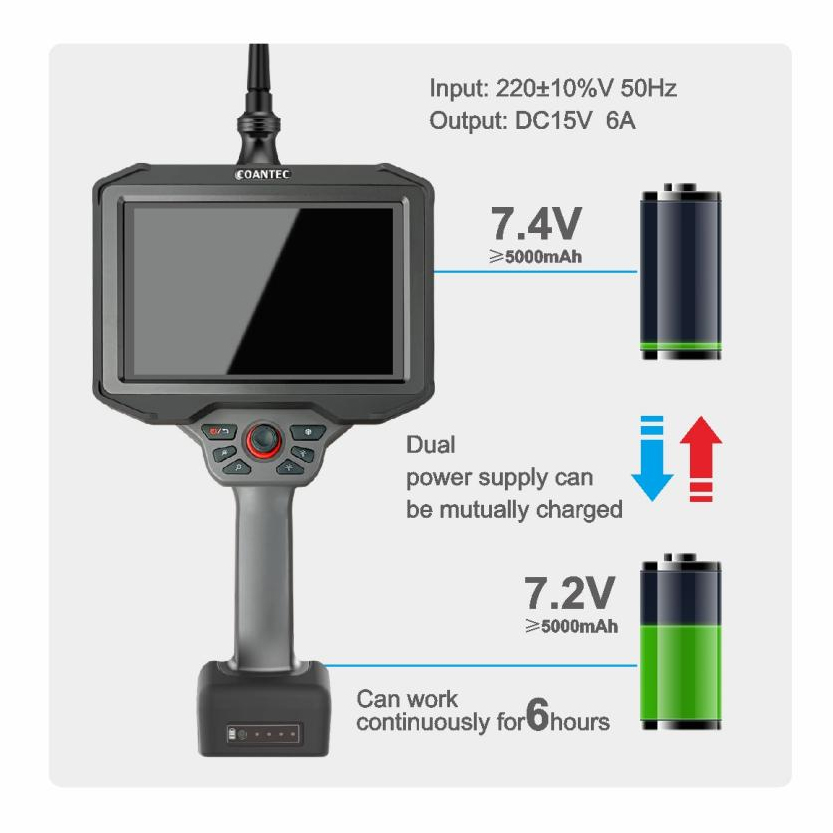

Dual power supply,long endurance

The original dual power supply mode is adopted,and rechargeable large-capacity  lithium  polymer  battery  is  built  into  the  handle  and  display  screen,which  can  be  used  for   more  than  6 hours to achieve ultra-long battery life.Fast battery charging  technology,with higher charging efficiency.

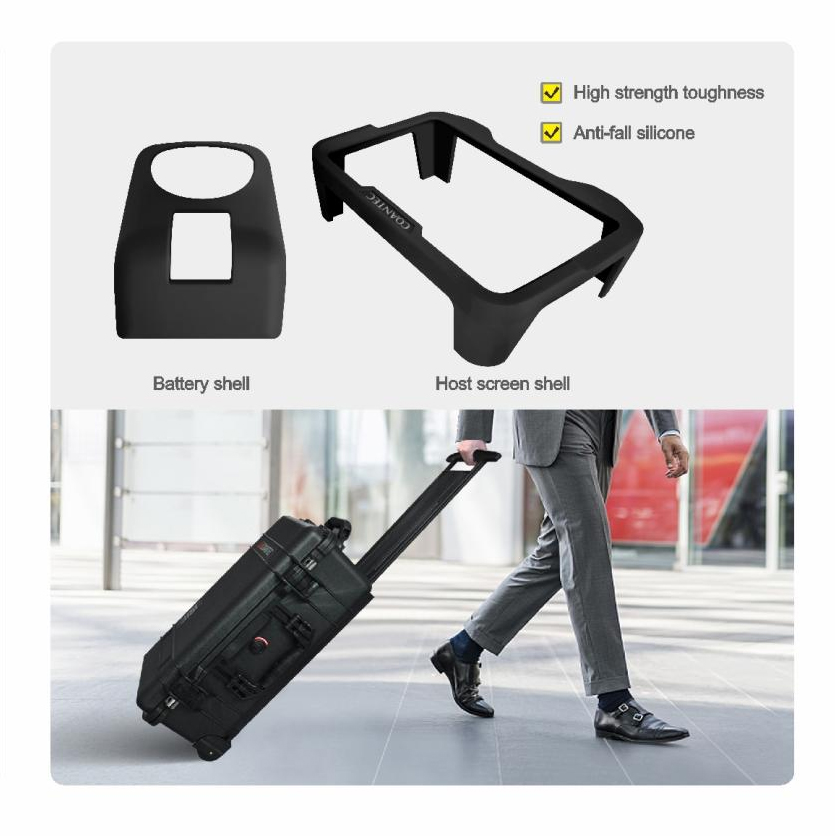

Strong and durable,resistant to fall and wear

The shell of the host is of  more abrasion resistant and scratch resistant  ABS+PC,and the display screen  is equipped with anti-fall Silica gel to make it  more durable.High performance professional instrument case,convenient storage,easy to travel  with.

Host system

Display

Brand new IPS HD touch screen

Display size

7-inch

Display resolution

1920*1200

Display detachable

●

●

User interface

Use the touch screen,physical buttons,and joystick menus to navigate

Host storage capacity

16G

Storage memory expandable

○

○

Host running memory

The standard running memory is 2GB and can be expanded to 4GB

Photography function

●

●

Image format

JPG/BMP

Video recording function

●

●

Video format

MP4

Real-lime image zoom

1-5 times through button or touchscreen

LED brightness adjustable

0-9 level

Image effect

Image brightness,contrast,hue,saturation,sharpness,gamma

Display brightness manual adjustment

●

●

Image mode

Default,monochrome,negative,bright,highlighted,or soft

Image rotation

●

●

Image freezing

●

●

Image mirroring

●

●

Image real-time comparison

●

●

Time watermark

●

●

Virtual joystick

●

●

Report generation

●

●

Ruler

None,circular ruler,cross ruler,or reference line

Bluetooth data transmission

●

●

WiFi data transmission

●

●

Battery power monitoring（shutdown state）

●

●

File operations

Full screen view/image/zoom/delete/rename/rotate/graffiti etc

Image Zoom

1-5 times(by button and touch screen)

Photo edit

Text annotation and graffiti functions(handwritten lines,arrows,boxes,round signs,text annotation,and can set the brush color and thickness)

User permission management

Administrator,Visitors,Standard user (created by administrator)

Menu/input method language

Simplified Chinese,English,Japanese,Korean,
French,German,Portuguese,Spanish,Russian,
Italian,Dutch and more than 10 other languages

3D measurement system

○

9 measurement methods: Length,Vertical,Depth,Multisegment,Area,Missing corner,Sectional,Circle and Gap.
3D measurement accuracy 0.01mm,
Measurement error ≤5%

Transport files through LAN

●

●

Online upgrade

●

●

Ingress Protection（host）

IP55

Output port

●

●

HDMI video output port

●

●

3.5mm audio port

●

●

USB 3.0 port*2

●

●

Type C port（data transmission ）

●

●

Dimensions

Host size

350mm*197mm*126mm

Packing size

551mm*351mm*240mm

Host weight（including battery）

2.1kg

Insertion tube

X5

(Standard version)

X5 Pro (Premium 3D measurement version)

Tube diameter（±0.1mm）and length

0.95mm

Tube length:1m-2m,

no articulation

-

1.2mm

-

1.6mm

Tube length: 1m-3m,

no articulation.

-

1.8mm

Tube length: 1m-3m.

360º All-Way tip articulation

-

2.0mm

-

2.8mm

-

3.0mm

-

3.9mm

-

4.8mm

-

4mm

-

Tube length:1m-3m

6mm

Tube length:1m-10m

360º All-Way tip articulation

Tube length:1m-5m

8mm

Tube length:1m-10m

Depth of view（mm）

5-50/5-100/7-150

View angle

70°/80°/100°/120°

Camera pixels

160,000/300,000/1,000,000/2,000,000

Tube replacement

●

●

Lens replacement

○

○

View direction

Front view/Side view/Front and Side view integrated

Light source

White light/Infrared/Ultraviolet

Light source type

Front LED/Rear-mounted LED+fiber light guiding

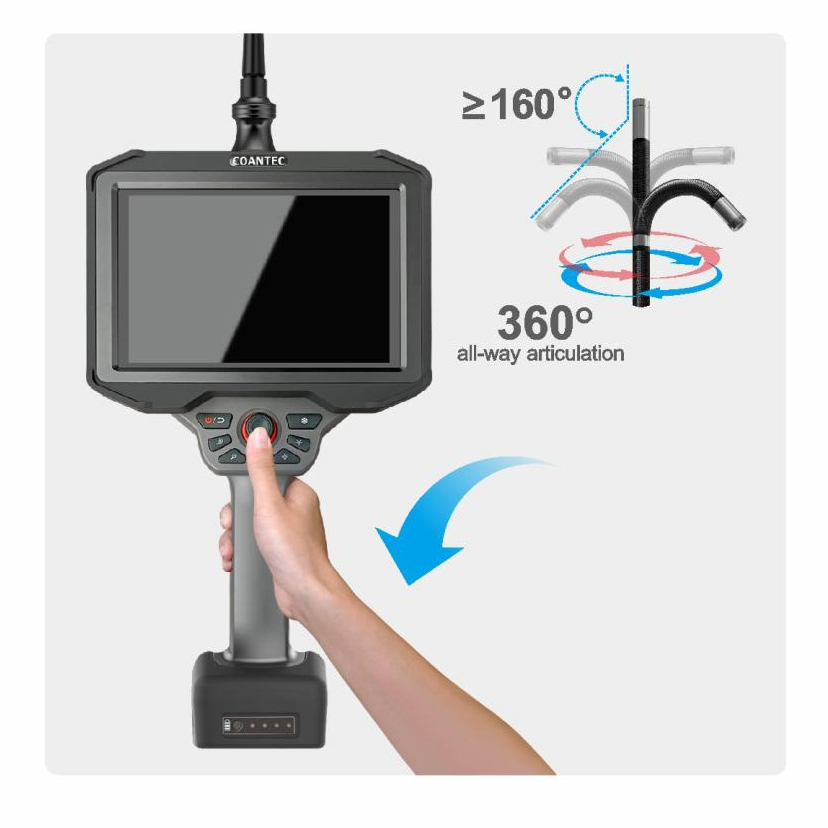

360°all-way articulation

●

●

Motor-control joystick

●

●

Probe bending angle

≥160°（eg:for 6mm 1m tube）

Bending speed

Fast/Slow,3 level in each mode

Probe lock/release

●

●

Probe housing material

Super hard alloy protection case

Tube material

Tungsten wire wear-resistant braided tube

Ingress Protection(insertion tube)

IP67

Power supply

Input power

Input:220±10%V 50Hz

Output

Output DC:15V 6A

Battery fast charging

Charging for 5 minutes can be used for half an hour;

50 minutes full charged.

Host battery capacity

Voltage:7.4V,Capacity:5000mAh

Handle battery capacity

Voltage:7.2V,Capacity:5000mAh

Continuous working time

≥6h（full charged）

Operating environment

System operating temperature

-20℃~60℃

Tip operating temperature

-20°C-100°C(With temperature alarm)

Storage temperature

-20℃-60℃

Relative humidity

15%-90%

Accessories

Special instrument case

●

●

USB flash disk

●

●

Power adaptor

●

●

Pipe centralized

○

○

Battery pack

○

○

Shoulder strap

●

●

Battery charge

●

●

HDMI cable

●

●

Customization

Tube length,diameter,light source

○

○

Tube can be added with a scale

○

○

Software

○

○

Display size

○

○

Lens

○

○

*The specific parameters are subject to the actual product.Please contact to the sales for confirmation.
