Product details description

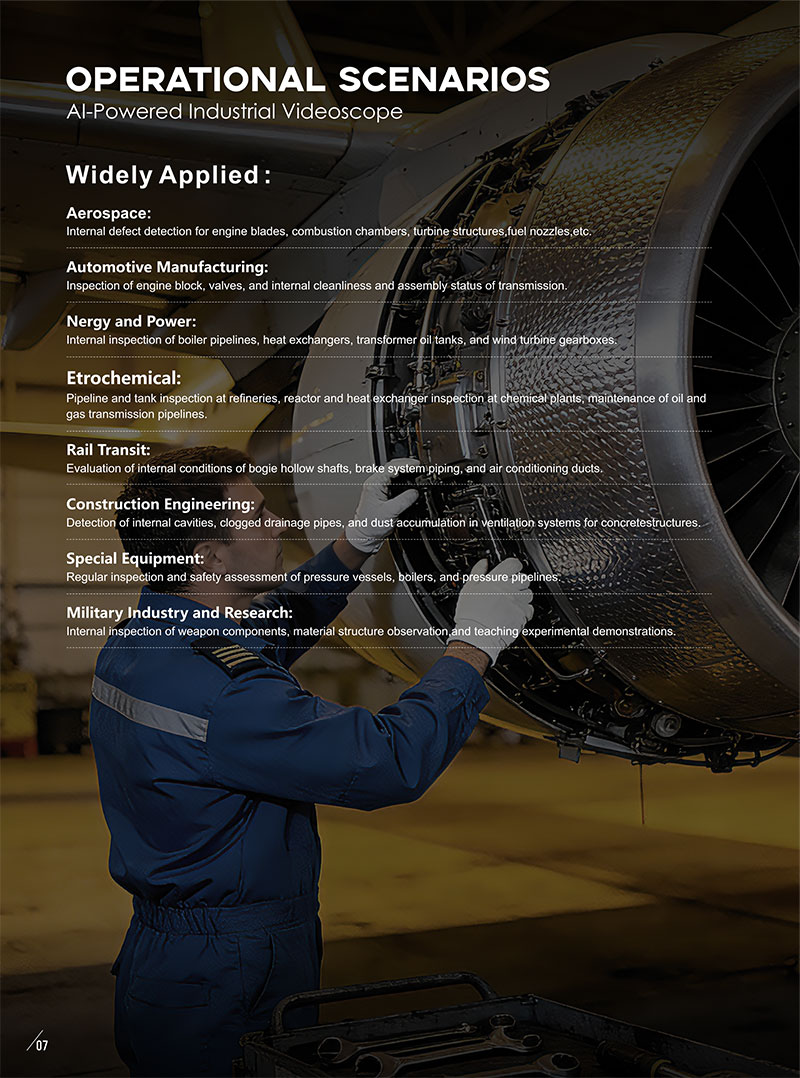

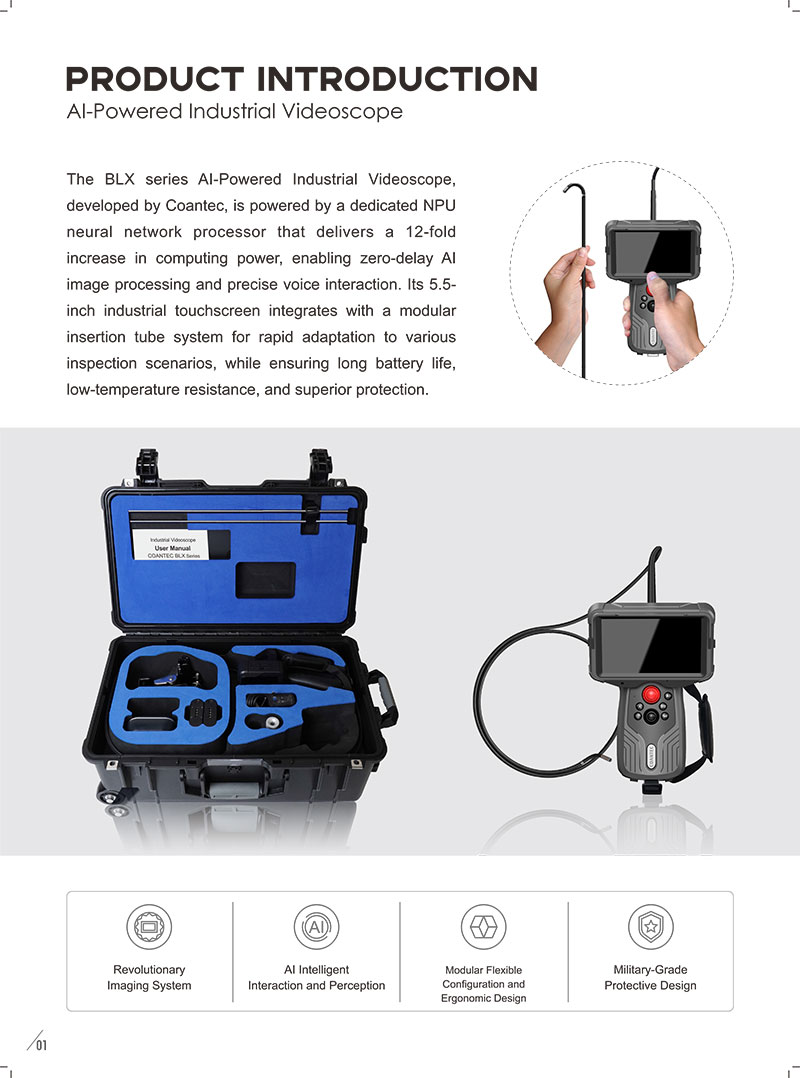

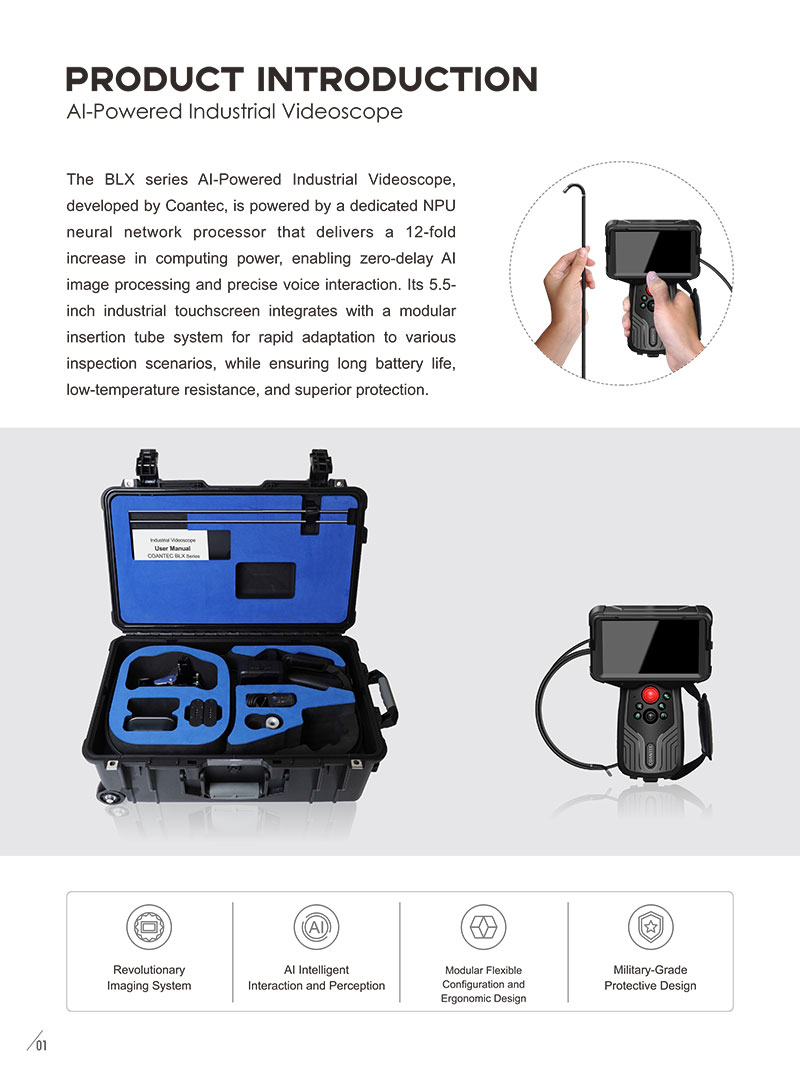

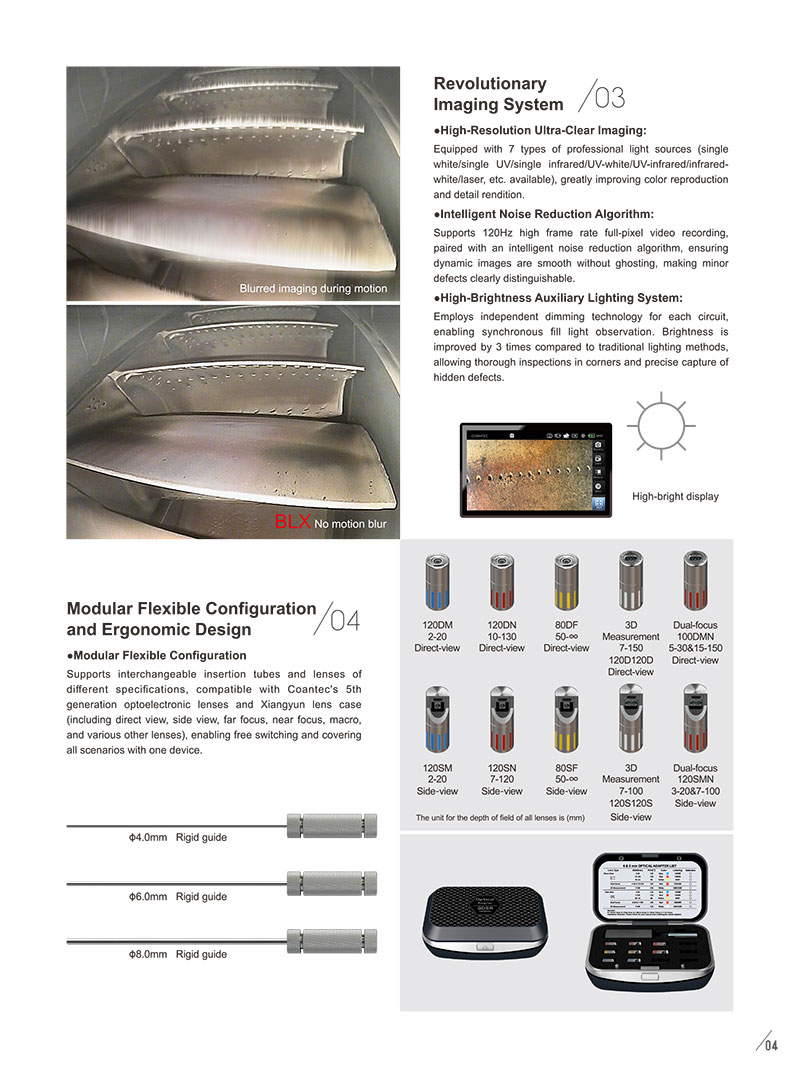

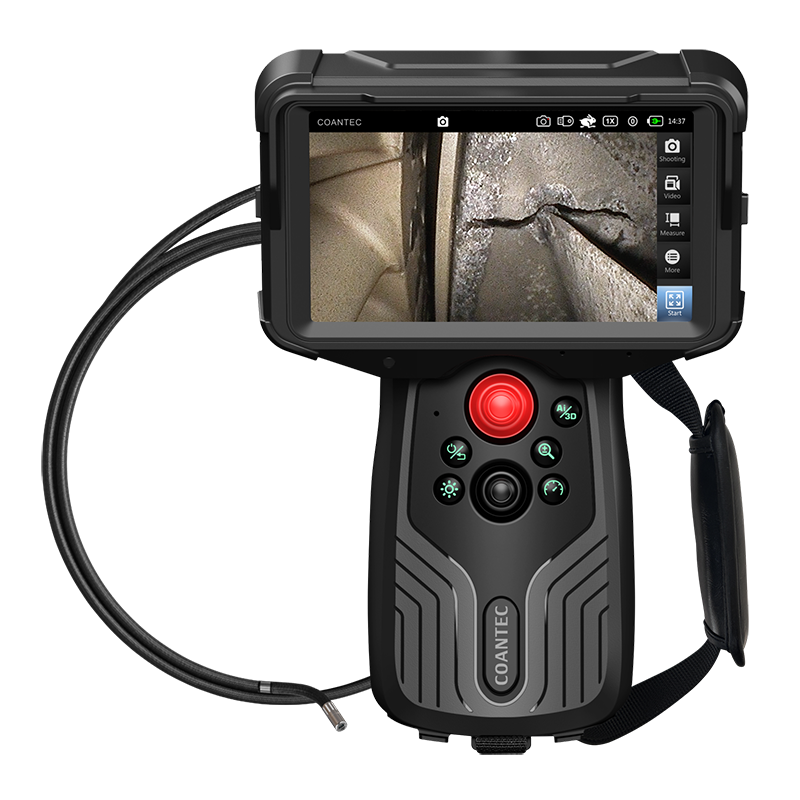

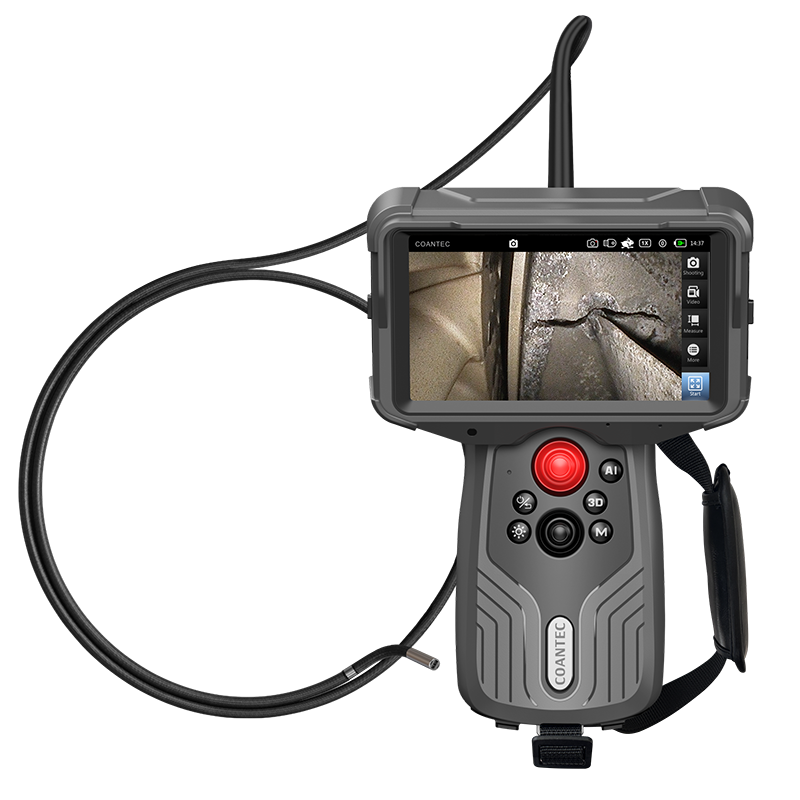

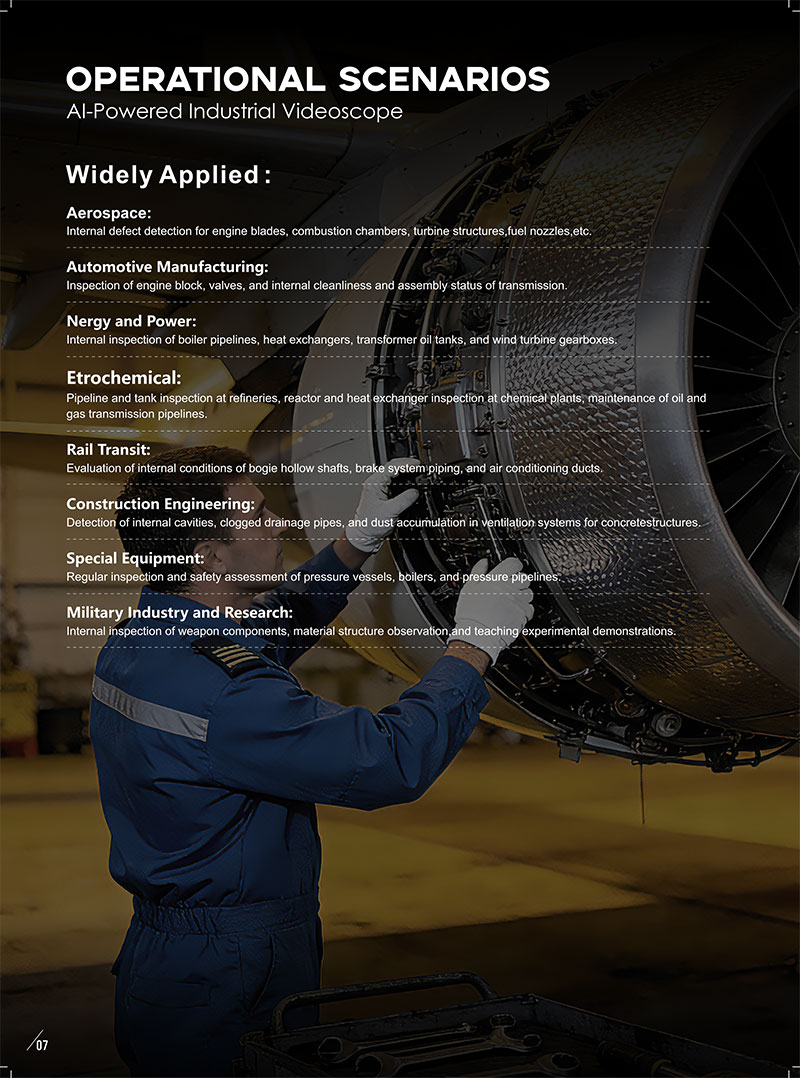

This AI-powered industrial endoscope leverages a dedicated NPU for real‑time image processing and intelligent defect recognition, automatically identifying defect types with high accuracy. Designed for demanding inspection tasks, the industrial endoscope features a high‑precision 3D measurement system that supports point‑to‑point, area, and gap calculations. Its modular insertion tube system allows quick configuration changes, making this industrial endoscope adaptable to diverse scenarios. A revolutionary imaging system delivers ultra‑clear visuals with professional light sources and intelligent noise reduction. Ergonomic controls include voice commands and a responsive joystick for effortless operation. Built to withstand harsh conditions, this industrial endoscope offers IP65 protection for the host, IP68 for the insertion tube, and optional cold‑resistant mode down to -40°C, ensuring reliable performance in aerospace, automotive, and energy applications.
| ● Standard ○Optional | ||
| Host System(Basic) | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| CPU Processor | 8-core, 2.4GHz Main Frequency | |
| NPU Processor | Dedicated neural network processor, 6-54Tops | |
| GPU Processor | Dedicated image acceleration processor | |
| Audio | Stereo speakers, microphone array | |
| Image Enhancement | Triple image enhancement technology | |
| Display specifications | Full-view industrial HD touchscreen | |
| Display size | 5.5-inch | |
| Display resolution | 1920 * 1080 | |
| Host material | Aerospace aluminum alloy | |
| Host storage capacity | Default 64GB, expandable up to 1TB | |
| Host operating memory | Standard 8GB, expandable up to 32GB | |
| Image storage format | JPG/BMP | |
| Video storage format | MP4 | |

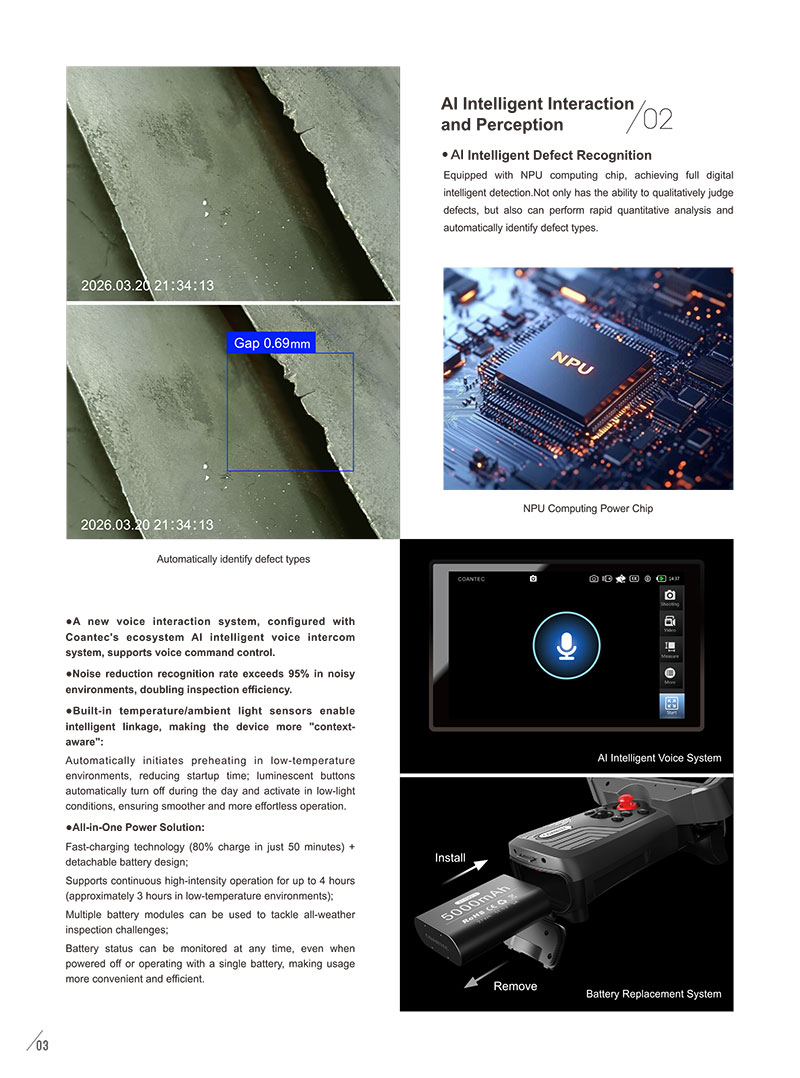

| AI image intelligent recognition | Supports automatic defect recognition | |
| AI voice interaction | Supports intelligent voice input and output, features an intelligent voice chip, allows menu control via voice commands, and includes noise reduction functionality | |
| Real-time image magnification | 5 times (supports multi-touch pinch-to-zoom gestures) | |
| LED brightness Adjustable | 0-9 level | |
| Image color adjustment | Adjust image brightness, contrast, hue, saturation, sharpness, gamma, and restore to default | |
| Image modes | Optional modes include color, monochrome, negative | |
| Screen Backlight Brightness | 1000nit high-brightness sunlight screen | |
| Ruler | Optional modes include "No ruler, circular ruler, cross ruler, or reference line" | |
| Battery level monitoring | With button, displays power level even in shutdown state | |
| File operations | Full-screen viewing of images/image zoom/delete/rename/rotate/doodle, etc. | |
| Image zoom | 5 times zoom (supports multi-touch pinch-to-zoom gestures) | |
| File editing | Text annotation, doodling feature (supports handwritten lines, arrows, boxes, circular markings, text annotations, brush color and thickness settings) | |
| Menu/input language | More than ten languages including Simplified Chinese, English, Japanese, Korean, French, German, Portuguese, Spanish, Russian, Italian, and Dutch | |
| User permission management | Administrator, guest, standard user (created by the administrator) | |

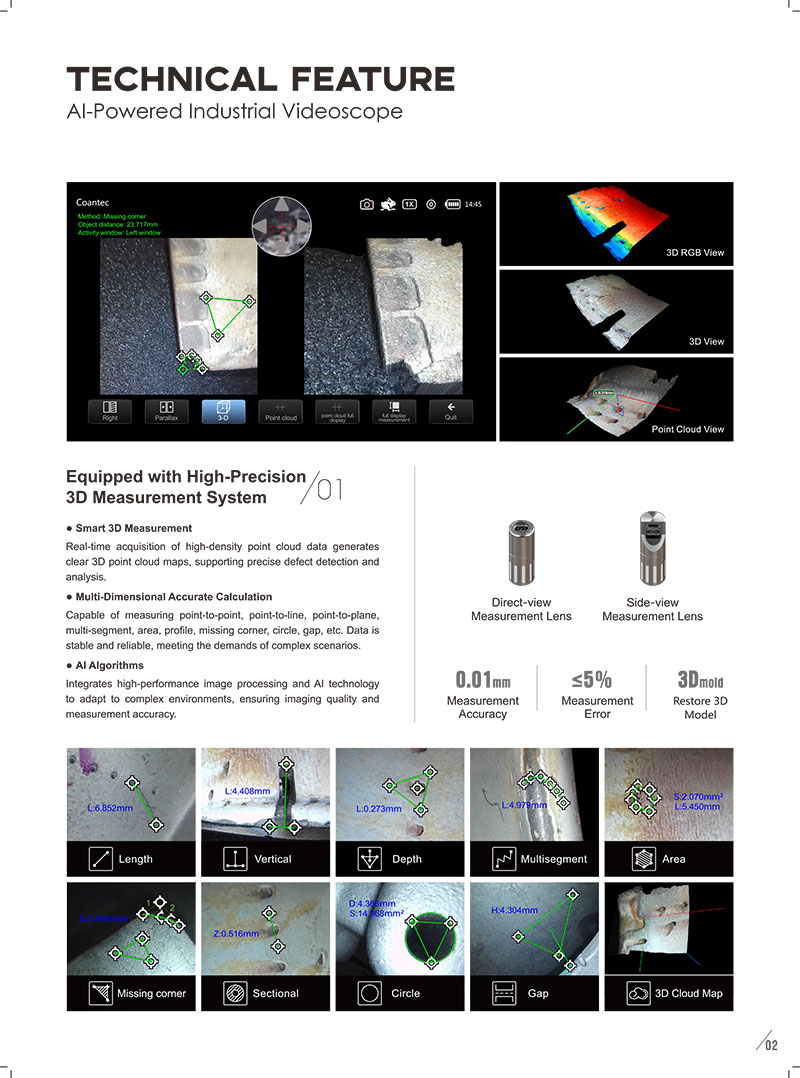

| 3D measurement system | / | 9 measurement methods: point-to-point, point-to-line, point-to-plane, multi-segment, area, missing corner, profile, circle, and gap; measurement accuracy: 0.01mm, measurement error: ≤5% |

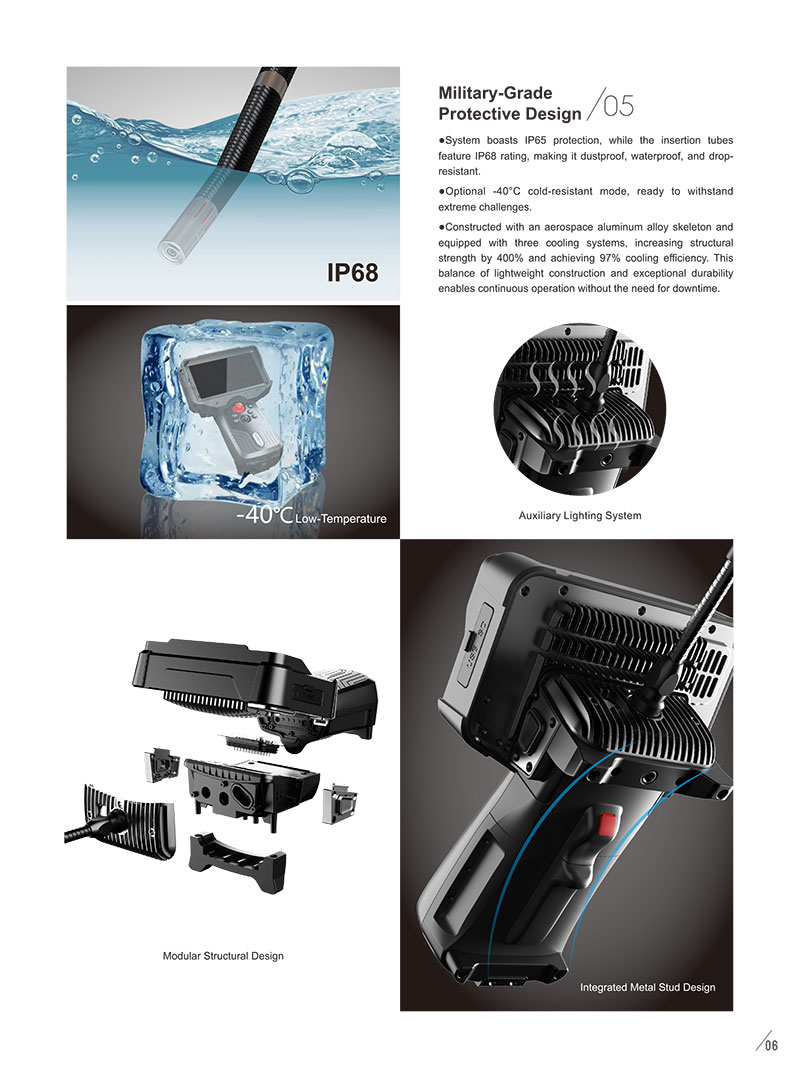

| Host dustproof and waterproof rating | IP65 | |
| Host System(Optional) | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| Photography function | ● | ● |
| Video recording function | ● | ● |
| Manual adjustment of display brightness | ● | ● |
| Image rotation | ● | ● |
| Image freeze | ● | ● |
| Mirroring | ● | ● |
| Real-time image comparison | ● | ● |
| Time watermark | ● | ● |
| Location watermark | ● | ● |
| Virtual joystick | ● | ● |
| Generate report | ● | ● |
| Secondary measurement | / | ● |
| Online upgrade | ● | ● |
| Output port | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| HDMI video output port | 1 | |
| 3.5mm audio output | 1 | |
| USB 3.0 port | 1 | |
| TF card with card reader | 1 | |
| Type C port | 1 | |
| Size specifications | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| Host size | 152mm215mm101mm | |
| Packaging size | 551mm351mm240mm | |
| Host weight (including battery) | 1.35KG | |
| Tube System(Basic) | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |

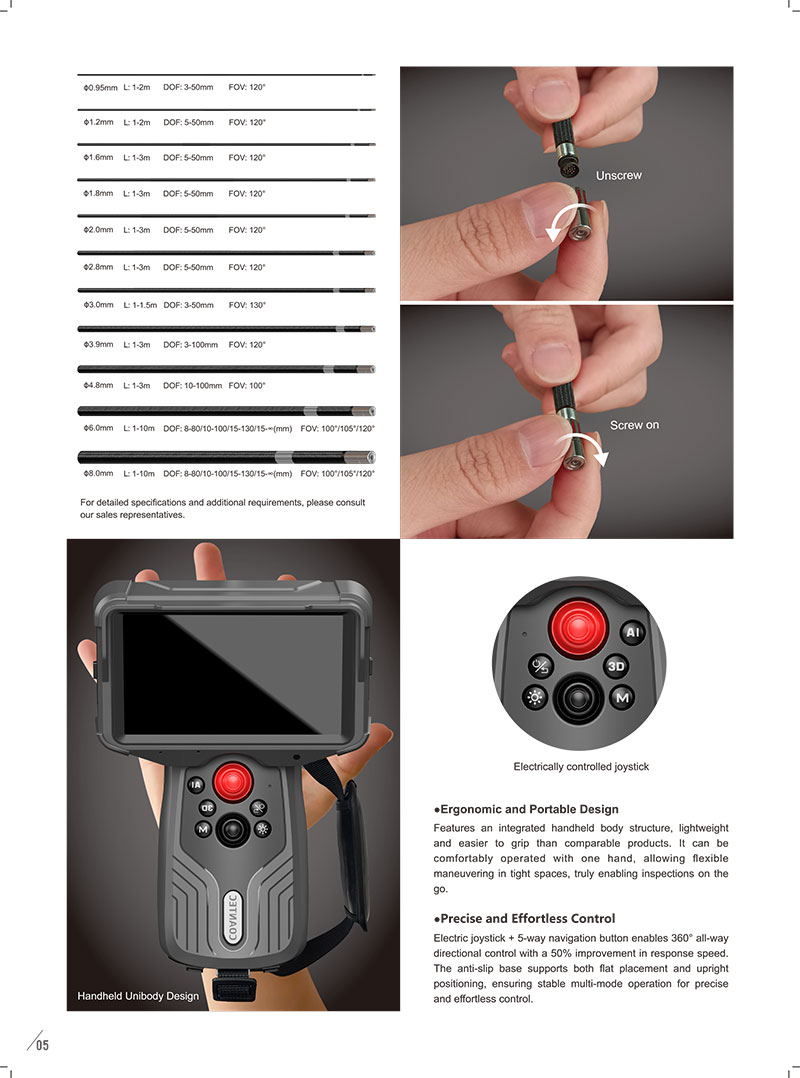

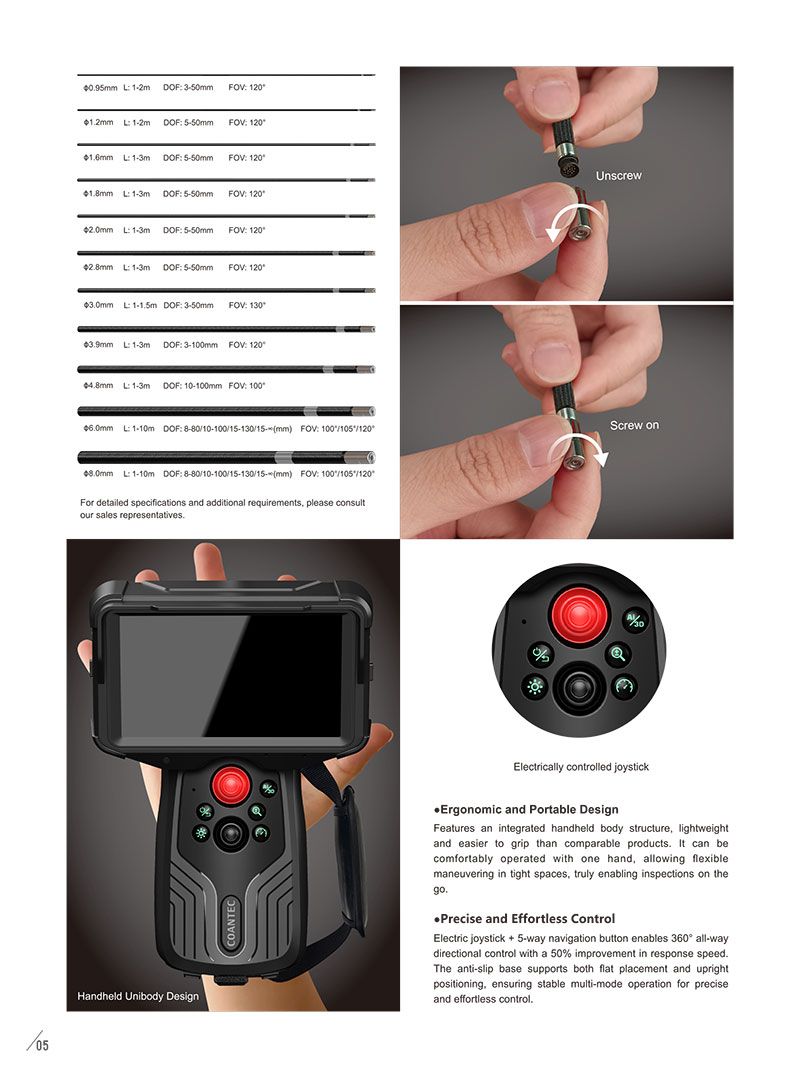

| * Tip diameter (±0.1mm) | 0.95 / 1.2 / 1.6 / 1.8 / 2.0 / 2.8 / 3.0 / 3.9 / 4.8 / 6.0 / 8.0 | |
| * Insertion tube length | 1m ~ 10m optional (measurement function only supports tubes ≥2mm) | |
| * Depth of field (mm) | 3-50 / 3-100 / 5-50 / 5-100 / 7-150 / 8-80 / 10-100 / 15-100 / 15-∞ / 50-∞ | |
| * Field of view | 80° / 100° / 120° / 140° | |
| * Camera pixels | 160K / 500K / 1M / 2M | |
| View direction | Direct view, Side view, Dual view | |
| Lighting source | Front LED / Backend LED with optical fiber / Laser | |
| Light source type | White light, UV light, Infrared light, Laser | |
| * Tube unidirectional bending angle | ≥ 160° | |
| Probe movement speed | Fast/slow speed adjustable | |
| Tip material | High-wear-resistant titanium alloy protective shell | |
| Insertion tube material | Tungsten Alloy Wire Braided Tube | |
| Dustproof and waterproof rating of insertion tube | IP68 | |
| Temperature sensor | Built-in over-temperature alarm system | |
| Tube System(Optional) | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| Replaceable insertion tube | ● | ● |
| Replaceable lens | ○ | ○ |
| 360° all-way articulation | ● | ● |
| Electric probe guidance control | ● | ● |
| Tip lock/release function | ● | ● |
| Probe lock step adjustment | ● | ● |
| Power Parameters | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| Power input | INPUT: 220±10%V 50Hz mains electricity | |
| Output | OUTPUT: DC12V 3A 40W | |
| Fast charging | 80% charge in 50 minutes | |
| Battery capacity (removable) | Voltage: 11.1V, 5000mAh at normal temperature, 4200mAh at low temperature (-40°C) | |
| Continuous working time of host | ≥4h at normal temperature; ≥3h at low temperature (-40°C) | |
| Operating Environment | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| System working temperature | -40°C-80°C | |
| Tip working temperature | -40°C-95°C | |
| Storage temperature | -40°C-60°C | |
| Relative humidity | Not greater than 95%, non-condensing | |
| Configurations | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| Standard configurations | Dedicated instrument case, TF card with card reader, Power adapter, Wrist strap, Cleaning set | |
| Optional configurations | USB flash drive, Centering device, Battery pack, Seat charger, HDMI cable, Battery module | |
| Personalized Customization | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| Insertion tube lengths, diameters, and lighting methods can be customized as required | ○ | ○ |
| Insertion tubes can be added with scale markings | ○ | ○ |
| Software customizable | ○ | ○ |
| Lens customizable | ○ | ○ |
| Notes | BLX (Standard Inspection Version) | BLX (Flagship Measurement Version) |
| * For specific parameters (such as illuminance, depth of field, resolution, field of view, working length, bending angle, etc.) and other requirements, contact relevant personnel for confirmation. | ||
