Product details description
Coantec C40 series

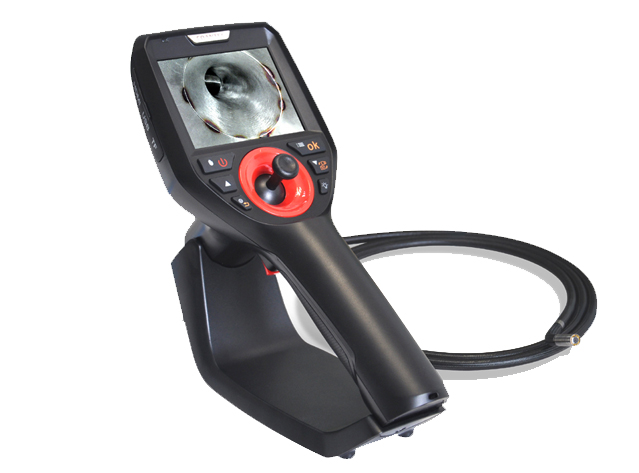

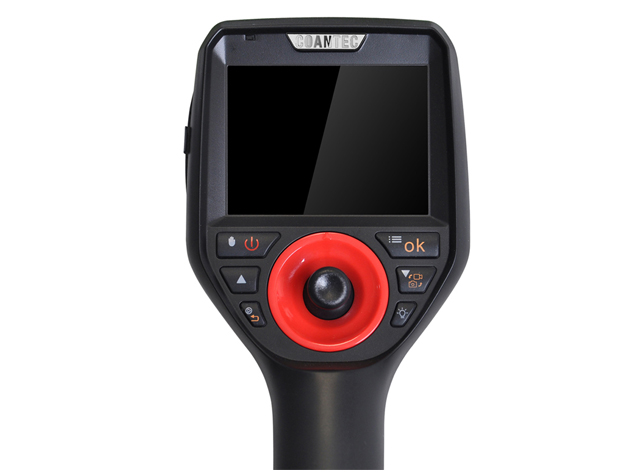

Coantec Ultra HD Mega Pixel Industrial Videoscope
● 720P HD Industrial camera
● User-friendly insertion tube exchange
● 0.95/1.2/1.6/1.8/2/2.8/3.9/4.8/6mm tubes optional
● Powerful software functions
● Lifetime warranty for rear-mounted LED lights
● Strong environmental adaptability

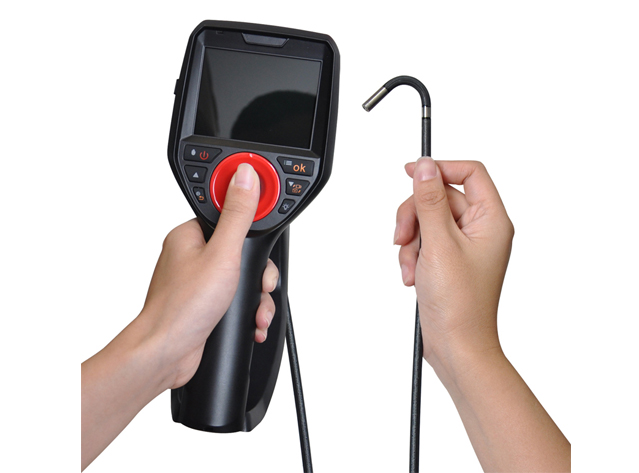

● 360° all-way articulation
Customized Services
We provide more customized services,we can add the functions according to your request:
● Tube length, diameter and lighting mode can be customized
● Can add scale ruler on the tube
● Software function customization
● Customized replaceable forward view and side view camera
● Foreign matter clamping set
● WiFi module and recording module can be customized
For more customized solutions, please contact us.
Brief introduction of C40 series
| The C40 series is a 360° all-way articulation industrial videoscope independently developed and produced by Coantec. This product uses a 3.5-inch HD display, an ultra-high-definition camera,waterproof and dust-proof level of inserted tube up to IP67,and customized oil proof tube, which is suitable for more severe environment. Users can replace the insertion tubes with different diameters and lengths | independently, realizing multi-purpose of one machine and saving cost effectively.The whole machine adopts integrated design, which is lighter and portable, and can be used in aviation, energy and electric power, mechanical casting, automobile manufacturing, special inspection and other fields. It can detect surface defects inside various equipments or the inner cavity of parts. |
|
|

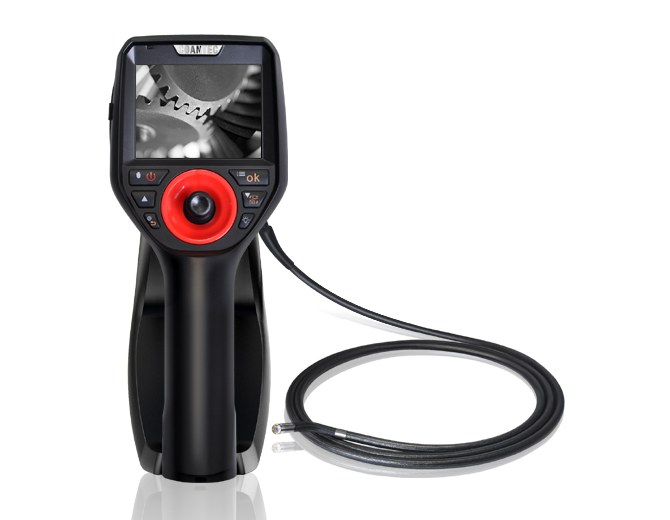

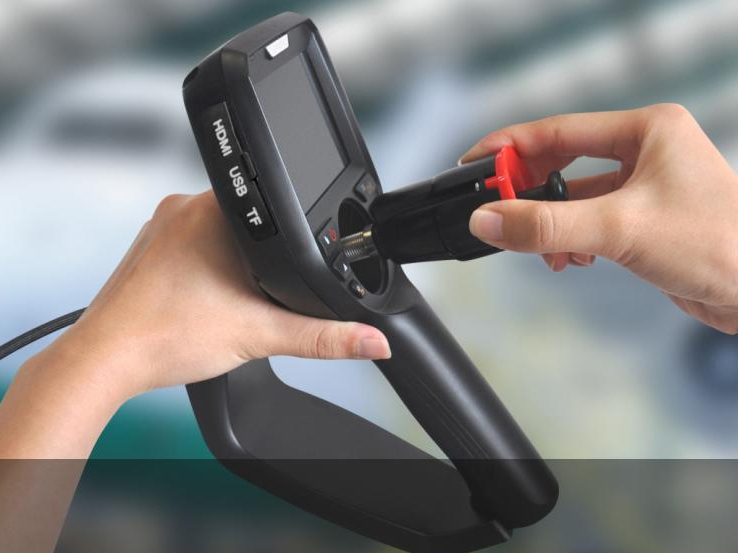

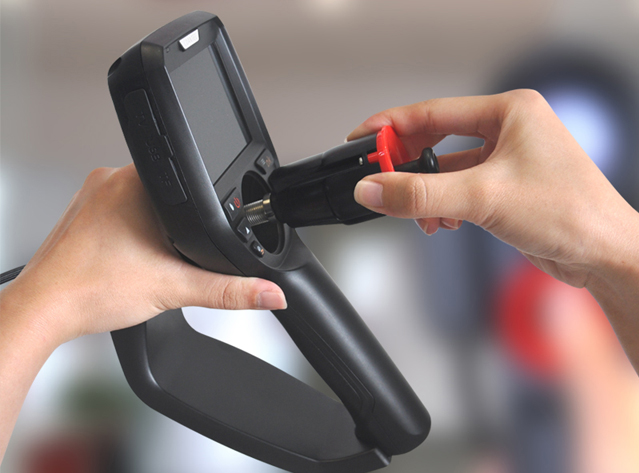

User-friendly insertion tube exchange

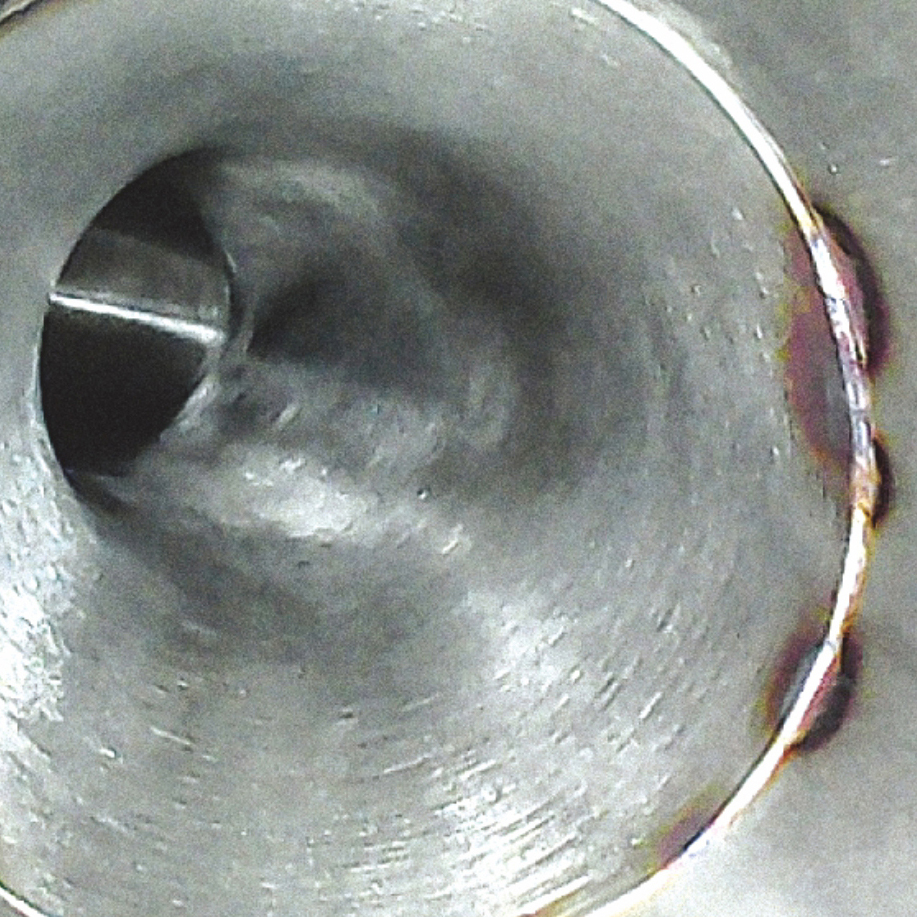

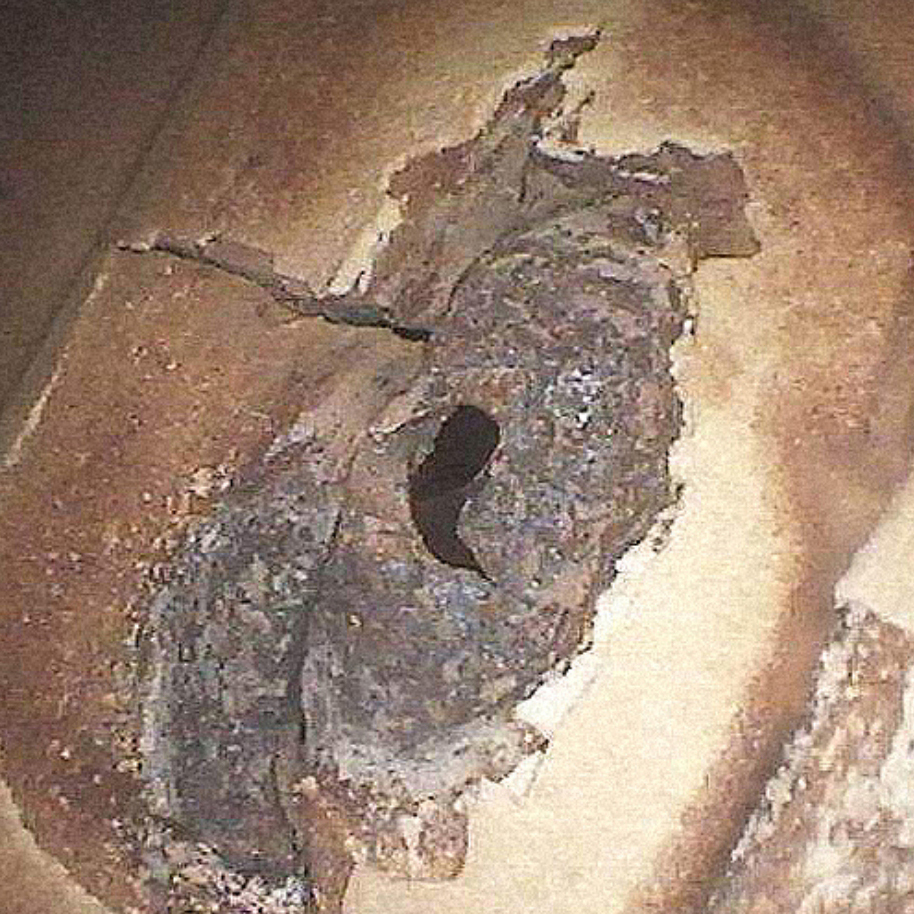

Match with multiple specification pipelines One host can be equipped with tubes with different diameters(0.95-6mm),lengths,depth of field,in order to satisfy the demands in different inspection applications. | High quality image It can shoot images and videos with clear image quality to help users conduct comprehensive and detailed diagnosis and analysis |
|
|

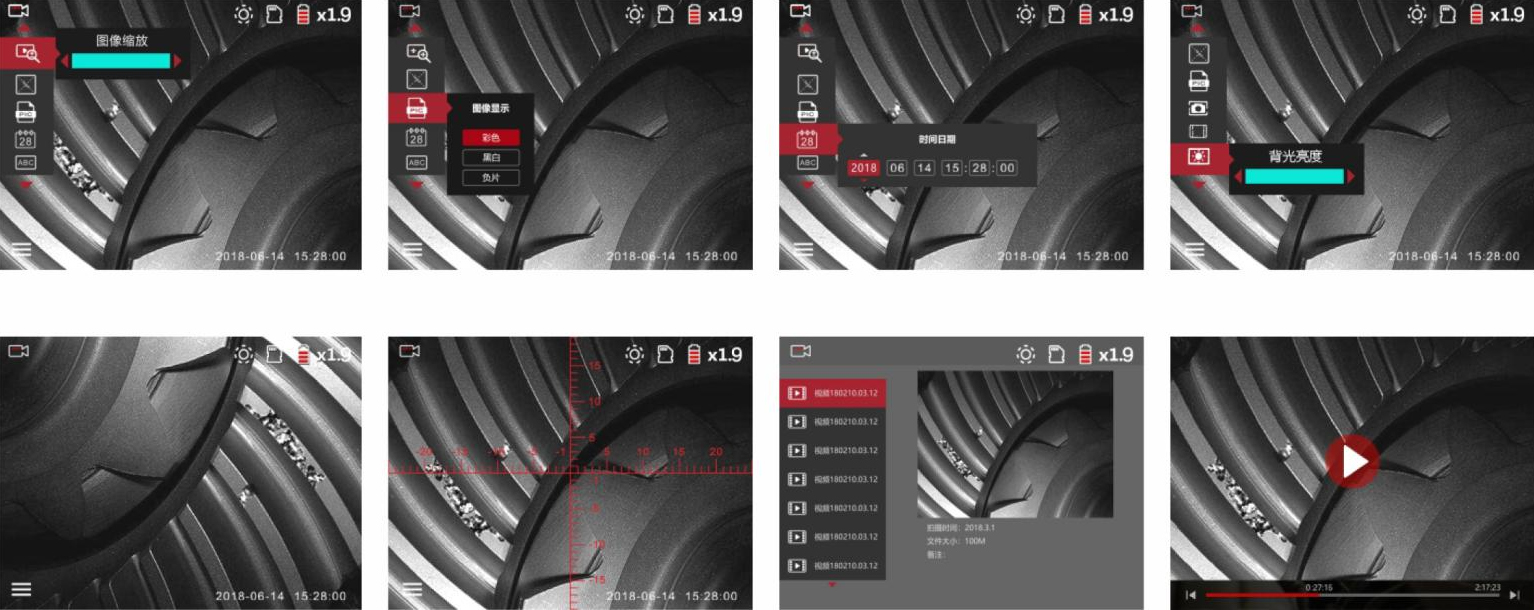

Powerful software functions
Strong environmental adaptability

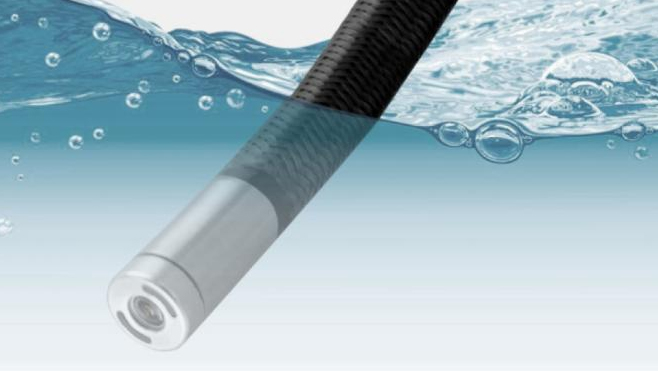

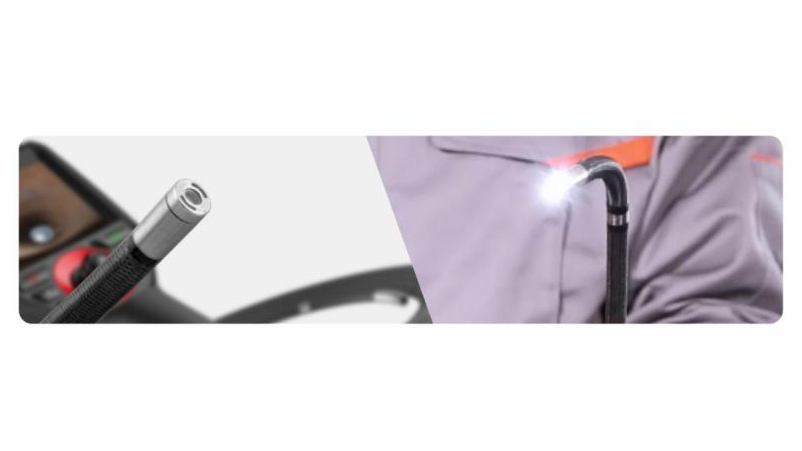

| IP67 Waterproof grade The oil-proof tube can be specially customized for the detection of wind power gearboxes and power equipment. | Warranty for rear-mound LED lights Rear-mound LED lights under warranty for lifetime |
|
|
Host | |
Display Dimension | 3.5-inch HD display |
Display Resolution | 640*480 |
Digital Zoom | Support real-time 4x zoom ,8x partial zoom when playback |
LED Brightness Level | 0-7 level adjustment |
Assistant Measurement | Cross cursor |
Photo/Video | Can take images and videos, and snapshot when recording |
Document Format | Image:JPEG/BMP; Video:MP4 |
Image Rotation | 0°/90°/180°/270° |
Image Preview | List mode/full screen mode |
Screen Backlight brightness | 3 -level adjustment |
Output Port | Micro HDMI |
Host | |
Menu Language | Simplified Chinese、 Traditional Chinese、English、Japanese, Korean, French, German, Portuguese, |
Spanish, Russian, Italian, Dutch etc. | |
Host Dimension | 240mm*102mm*126mm |
Package Dimension | 411mm*321mm*165mm |
Host Weight | 0.45kg(include battery) |
Insertion Tube | |||||||||
Diameter (±0.1mm) | Φ0.95 | Φ1.2 / Φ1.6 | Φ1.8 | Φ2 | Φ2.8 | Φ3 | Φ3.9 | Φ4.8 | Φ6 |
Camera pixels | 160K | 160K | 160K | 160K | 160K | 1M | 1M | 1M | 1M |
View direction | Direct view | Direct view | Direct view | Direct view | Direct/side view | Direct view | Direct/side view | Direct/side view | Direct/side view |
Depth of field | 5-50mm | 5-50mm | 5-50mm | 5-50mm | 5-50mm | 3-50mm | 5-100mm | 8-80mm | 8-80mm |
Field of view | 120° | 120° | 120° | 120° | 120°/70° | 130° | 120°/70° | 120°/70° | 120°/70° |
Working length of insertion tube | 1-2m | 1-2m | 1-3m | 1-3m | 1-3m | 1-3m | 1-3m | 1-3m | 1-7m |
Lighting mode: Optical fiber or Front LEDs | Fiber | LEDs | LEDs | LEDs | LEDs/ Fiber | LEDs | LEDs/ Fiber | LEDs/ Fiber | LEDs/ Fiber |
Tip guidance capability | No articulation | No articulation | 4-way | 360° all-way guidance | |||||
Tip unidirectional bending angle | / | / | / | 150° for insertion tube length ≤3m; 120° for length ranging from 3-5m; 90° for length ≥7m | |||||
Insertion tube material | Tungsten alloy wear-resistant braided tube | ||||||||
Tip material | Hard alloy protective shell | ||||||||
Guidance control method | / | / | Mechanical control | ||||||
Compatibility | Replaceable insertion tube | ||||||||
Protection device | Buffer protection device for connection between host and wear-resistant tube | ||||||||
Tip waterproof rating | / | / | / | IP67 | |||||
Power | |
Power Supply | Rechargeable lithium battery (with reverse battery protection.) |
Battery | 3.7V,3200mAh |
System Operating Time | ≥4H |
OperationEnvironment | |
Systerm Operating Temperature | -10°C-50°C |
Probe Operating Temperature | -20°C-60°C |
Storage Temperature | -20°C-60°C |
Relative Humidity | 15%-90% |
Configurations | |
Standard Configurations | C40 videoscope x1,instrument case x1,magnetic base x1, lithium battery x1, charger x1, card reader x1, 8G TF card x1, anti-fall hand strap x1,user manualx1,precautions for use x1 |
